Architecture

Code Mode Pattern

drawmode exposes three MCP tools: draw (generate/edit diagrams), draw_describe (convert .excalidraw to TypeScript), and draw_info (capabilities reference). The LLM writes TypeScript code against the Diagram SDK:

1. LLM receives the draw tool with SDK type definitions (~100 lines)
2. LLM writes code using the Diagram class
3. executor.ts runs code via new Function("Diagram", code) with a ConfiguredDiagram subclass
4. SDK runtime validation catches errors at call time — invalid IDs, wrong element types, missing dependencies throw actionable errors the LLM can self-correct on
5. Zig WASM (Graphviz C statically linked) handles layout positioning and arrow routing via the dot engine
6. WASM structural validation checks the rendered output (bound text, duplicate IDs, overlapping shapes)
7. Output: .excalidraw file, excalidraw.com URL, .png file, or .svg file

Project Structure

drawmode/
├── src/                     # TypeScript (MCP server + SDK)
│   ├── index.ts             # MCP server entry point (stdio + HTTP)
│   ├── sdk.ts               # Diagram SDK (addBox, connect, render, etc.)
│   ├── executor.ts          # Local executor (new Function + Diagram subclass)
│   ├── layout.ts            # Layout bridge (loads Zig WASM with statically-linked Graphviz)
│   ├── upload.ts            # Excalidraw.com upload (encrypt + POST)
│   ├── png.ts               # Image export (linkedom + PlutoSVG WASM, no browser)
│   ├── svg-render.ts        # linkedom DOM setup + Excalidraw exportToSvg + font embedding
│   ├── types.ts             # Shared types (ColorPreset, ShapeOpts, ConnectOpts, etc.)
│   ├── sdk-types.ts         # SDK type definitions string (embedded in tool description)
│   └── widget.html          # MCP Apps HTML widget for Claude Desktop/Cowork
├── wasm/                    # Zig WASM module
│   ├── src/
│   │   ├── main.zig         # WASM exports (alloc, resetHeap, layoutGraph, routeArrows, validate, svgToPng)
│   │   ├── layout.zig       # Graphviz layout (C lib statically linked)
│   │   ├── arrows.zig       # Arrow routing
│   │   ├── validate.zig     # Structural validation
│   │   ├── compress.zig     # Zlib compression (RFC 1950/1951)
│   │   ├── svg2png.zig      # SVG→PNG via PlutoSVG/PlutoVG (statically linked C libs)
│   │   ├── font.zig         # Font metrics
│   │   └── util.zig         # Shared utilities
│   └── build.zig
├── worker/                  # Cloudflare Worker entry point (remote MCP)
│   ├── index.ts
│   └── wrangler.toml
├── package.json
└── tsconfig.json

Layout Engine: Graphviz

The primary layout engine is Graphviz — the C library is statically linked into the Zig WASM module (drawmode.wasm).

• dot layout: Layered graph layout (Sugiyama algorithm) with proper crossing minimization
• splines=ortho: Orthogonal edge routing for vertical layouts (TB/BT); curved splines for horizontal layouts (LR/RL)
• Cluster subgraphs: Groups rendered as Graphviz clusters for proper containment
• rank=same: Nodes with same row value share a rank in the layout
• Coordinate conversion: Graphviz points (Y-up) → Excalidraw pixels (Y-down)

Zig WASM Module (drawmode.wasm)

A single Zig WASM binary with Graphviz C statically linked. Handles layout, edge routing, and validation:

WASM exports:

Export	Description
alloc / dealloc	Bump allocator memory management
resetHeap	Reset bump allocator between calls
layoutGraph	Primary layout engine (Graphviz Sugiyama with orthogonal edge routing)
routeArrows	Arrow endpoint routing
validate	Structural validation (bound text, duplicate IDs, overlapping elements)
zlibCompress	Zlib compression for excalidraw.com upload
svgToPng	SVG→PNG via PlutoSVG/PlutoVG (conditional: -Denable_svg2png)

Input/output is JSON bytes — the TypeScript layer serializes to JSON, passes to WASM, and reads back results.

Two-Layer Validation

Layer 1: SDK runtime validation (at call time)

Every SDK method validates its inputs before modifying state. This catches errors immediately with actionable messages:

• connect(from, to) — both IDs must be nodes (not groups or frames)
• addGroup(label, children) / addFrame(name, children) — all children must exist; frames cannot be nested
• message(from, to) — both IDs must be actors
• updateNode(id) / updateEdge(from, to) — target must exist
• removeGroup(id) / removeFrame(id) — target must exist

Layer 2: WASM structural validation (after render)

Post-render checks on the generated Excalidraw JSON:

• Bound text elements have matching containers
• No duplicate element IDs
• Arrow endpoints reference valid elements
• No overlapping elements

Excalidraw JSON Internals

The SDK handles these Excalidraw quirks so the LLM doesn’t have to:

• Labels need two elements: shape with boundElements + text with containerId
• The label property does NOT work in raw JSON
• Elbow arrows need: elbowed: true, roundness: null, roughness: 0
• Arrow x,y must be on source shape edge, not center
• Multiple arrows from same edge must be staggered (20%, 35%, 50%, 65%, 80%)

Image Export Pipeline

PNG and SVG export uses linkedom (pure JS DOM shim) to run Excalidraw’s exportToSvg() server-side, then PlutoSVG WASM for SVG→PNG conversion. No browser or puppeteer needed.

• SVG: linkedom provides DOM → Excalidraw exportToSvg() → SVG string via renderSvgWasm()
• PNG: SVG string → PlutoSVG WASM (svgToPng in svg2png.zig) → PNG at 2x retina via renderPngWasm()
• Fonts: Virgil.ttf + Assistant-Regular.ttf embedded via @embedFile in Zig WASM
• No fallbacks: If WASM is not loaded, export throws. No puppeteer, no graceful degradation.

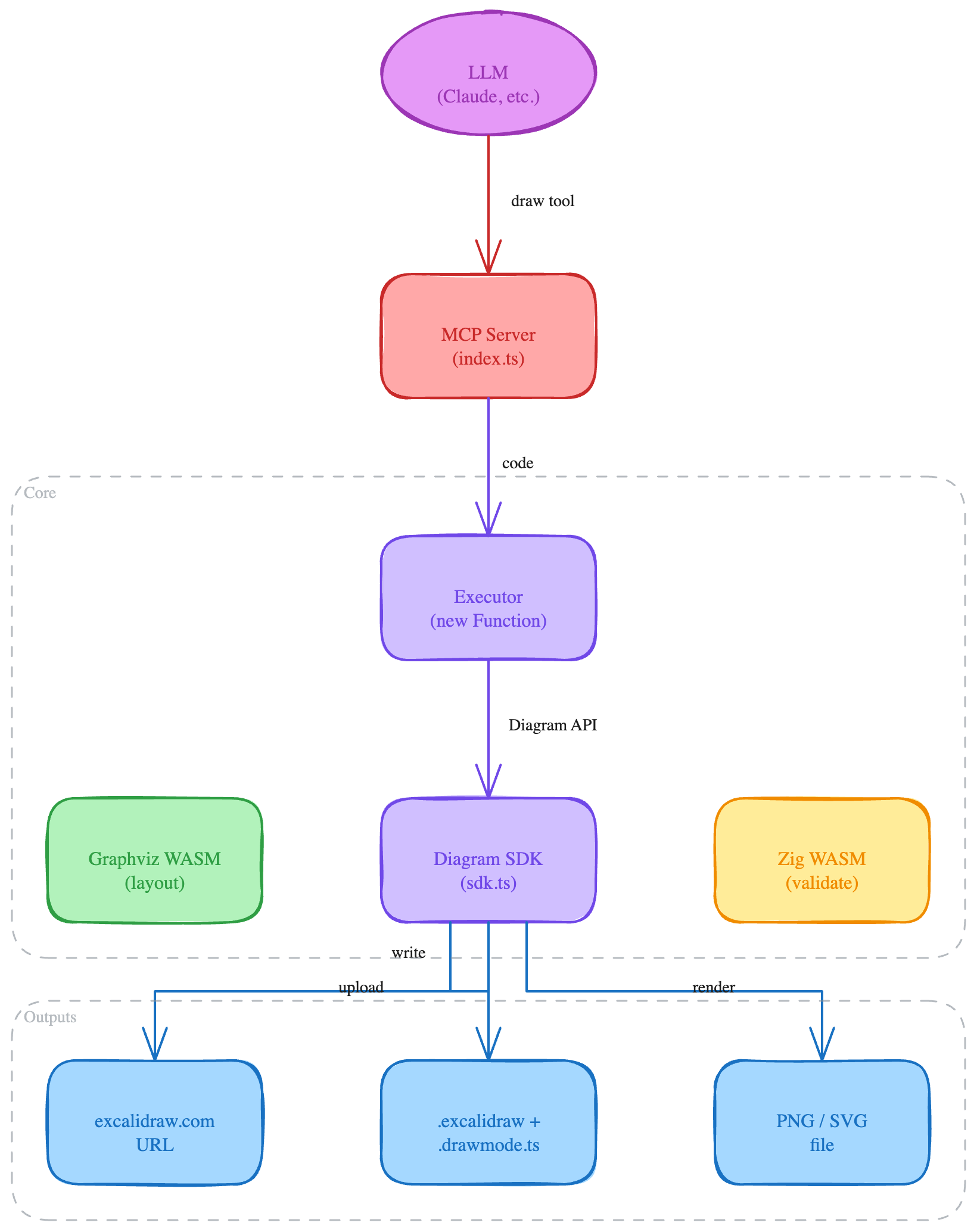

System Overview

Dependencies

TypeScript

Package	Purpose
@modelcontextprotocol/sdk	MCP protocol (McpServer, transports)
zod	Schema validation for MCP tool parameters
linkedom	Pure JS DOM shim for server-side Excalidraw SVG rendering

Zig

No external dependencies. Standard library only. Vendor C libs (PlutoSVG, PlutoVG) statically linked for SVG→PNG.

Development

pnpm install              # Install dependencies
pnpm build                # Build TS + WASM (fails fast if Zig fails)
pnpm build:wasm           # Build WASM module only
pnpm dev                  # Dev server (HTTP mode)
pnpm test                 # Run tests
pnpm typecheck            # TypeScript type checking

cd wasm && zig build       # Build WASM module only
cd wasm && zig build test  # Run Zig tests
